Flow Chart: output can be virtual channels
- Columns in any output table can be enabled to create/populate a virtual channel. The virtual channel can be used in any other view of WinDarab for futher analysis.
- Peristent channels are also supported for single files (not linked files and not telemetry), but only if the evaluation “Whole file” is selected for the flow chart. Note: Be aware that persistent channels are replaced each time the flow is executed!
- The name of the column is used as the name of the virtual channel and the name of the table is used as the data source. Nevertheless to prevent name conflicts we encourage the use of „unique names“. WinDarab will resolve channel name conflicts** nevertheless depending on the execution order of Flow Charts the name conflicts aren’t always resolved the same way!

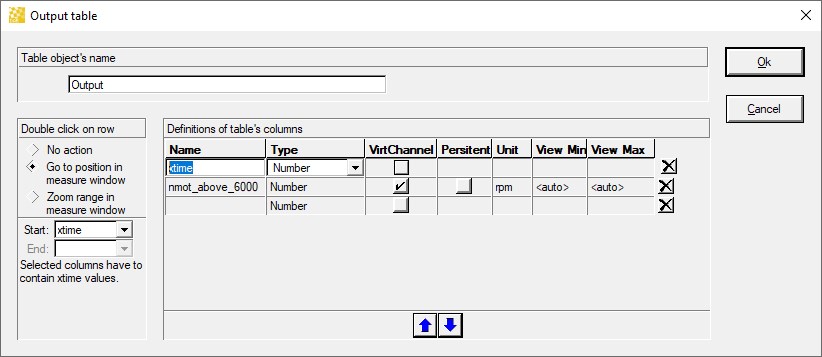

Setup of the Output Table:

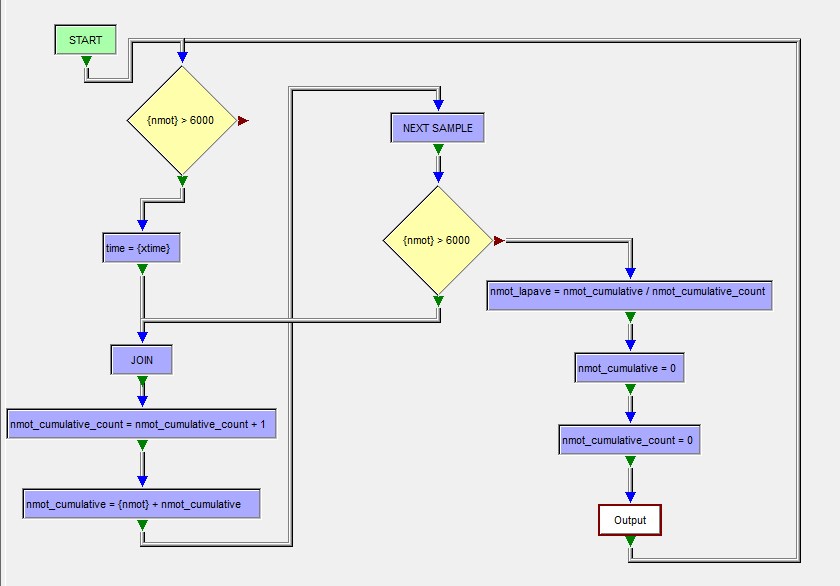

Example Flow chart (calculate the average engine rpm (nmot) above 6000 rpm):

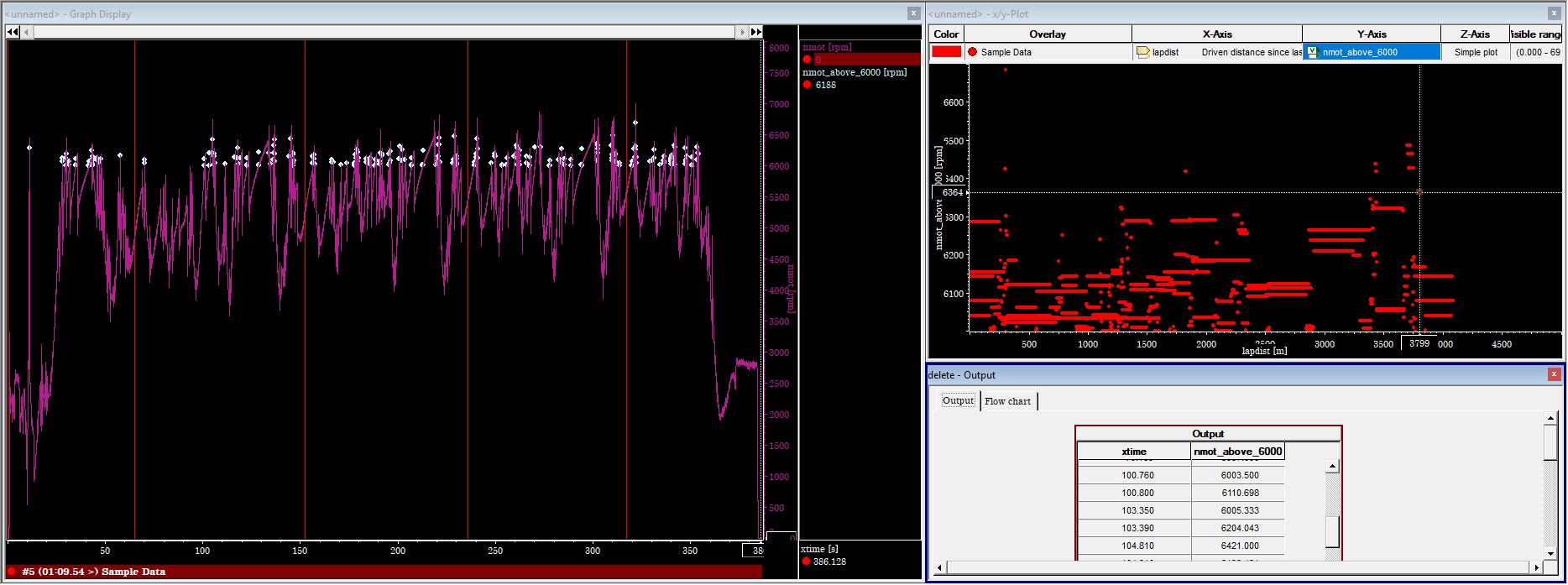

Example Output (oscilloscope and XY Plot):
