DirectLink as UDP Proxy / Port forwarding

The UDP Proxy function allows a data stream to be forwarded to an external application.

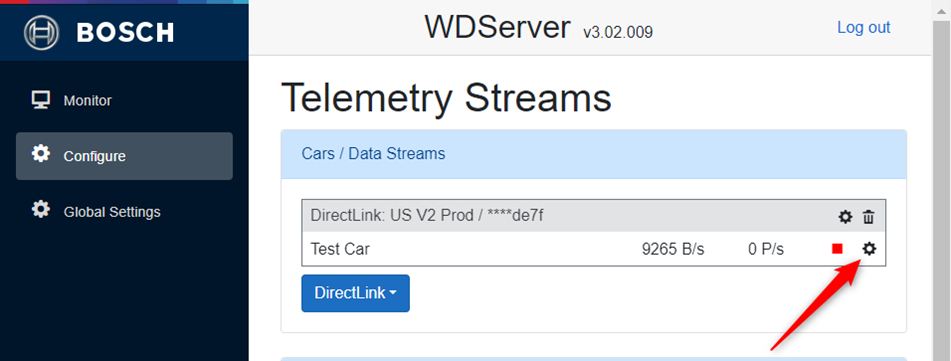

  1. Click on the settings gear next to the data stream statistics.

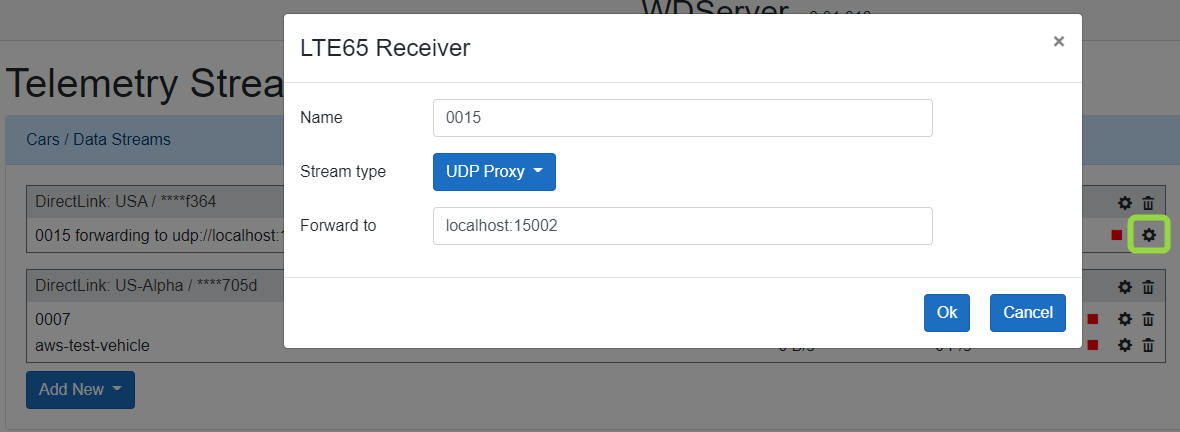

  3. Select Stream Type: UDP Proxy
  4. Forward to: Enter the IP address and port where the external application will listen for data. Use a colon „:“ to separate the IP address and port.
    Examples:
    localhost:15002
    127.0.0.1:15002
    192.168.1.25:15002

Where 150xx is an arbitrary port also set up in the other application.

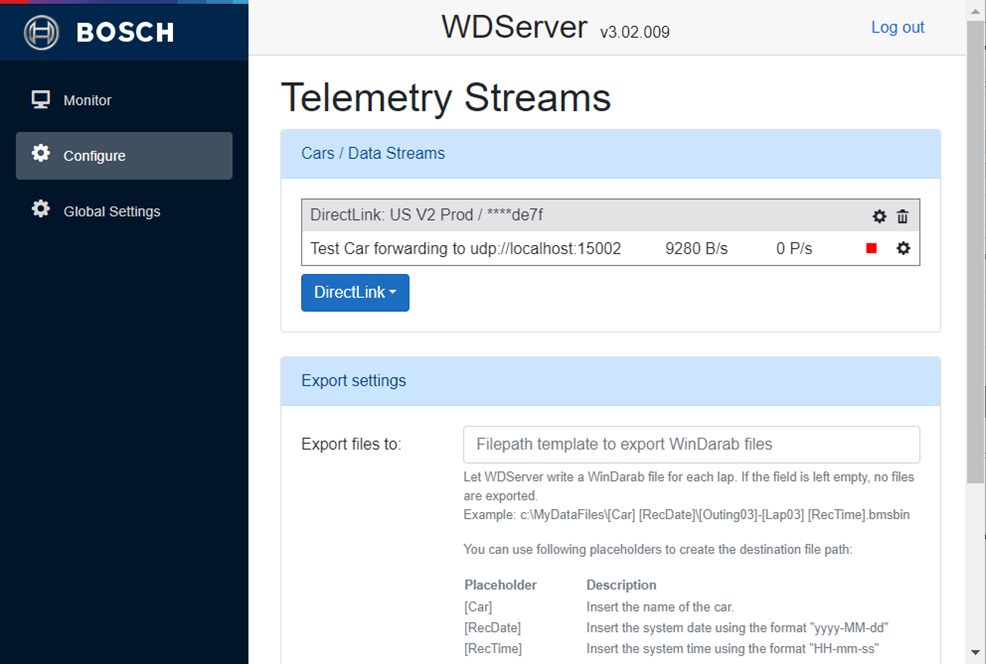

After the setup, WDServer will report where data is being forwarded:

Example of matching Cosworth Pi Toolset configuration:

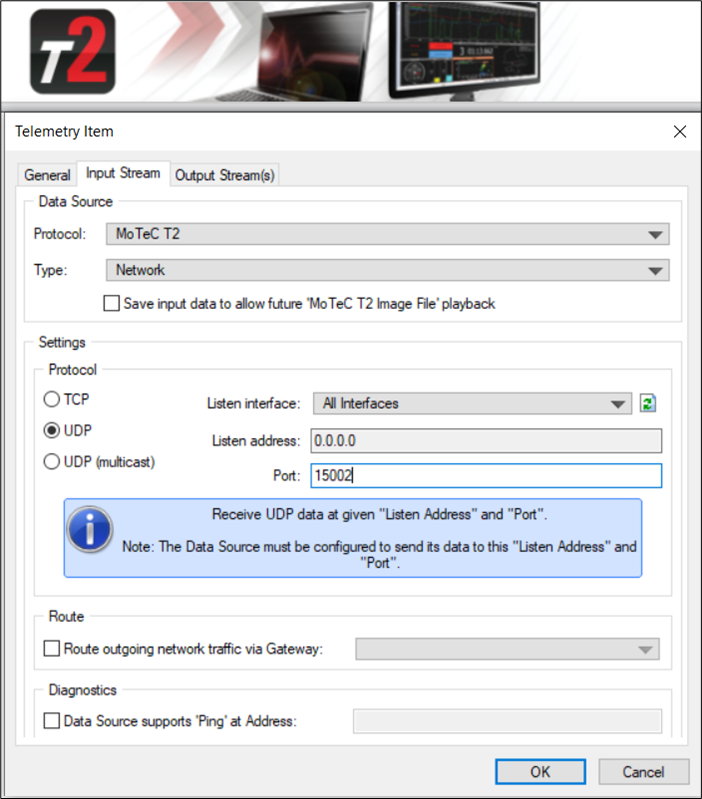

Example of matching MoTeC T2 Server configuration:
