This sensor is designed to measure rotational movement of throttle position.
The electrical circuit is designed with a magnetic rotary sensor using a Hall element and digital signal processing; sensor output is ratiometric. The angular position is provided by a two pole magnet integrated in the sensor shaft.
The main benefit of this sensor is its contactless Hall effect technology and its robust design for motorsport applications which includes fully redundant power and ground.
- Downloads
- Features
- Application
- Technical Specifications
- Installation Notes
- Ordering Information
- Dimensions
- Legal Restrictions
Downloads
Features
- Rotational movement measurement
- Hall effect technology
- Measurement range: 0 to 360° possible
- Analog output 0.2 to 4.8 V
- Dual output, fully redundant possible
Application
Application | 0 to 360° possible |
Operating temperature range | 0 to 150°C |
Max. vibration | 200 m/s2 at 5 to 2,000 Hz |
Technical Specifications
Mechanical Data
Weight w/o wire | < 36 g |
Protection class | IP58 |
Mounting | 2 x M4 screw |
Lifetime | 5 x 106 operations of ±65° |
Housing | Aluminum |
Electrical Data
Power supply US | 5 ± 0.5 V regulated |
Max. overvoltage | 24 V |
Half voltage tolerance | ± 2° |
Supply current | < 12.5 mA |
Resolution | < 0.1° |
Output voltage range | Ratiometric analog |
Output load | > 10 kOhm |
Characteristic
Max. rotation speed | 600 RPM |
Temp. coefficient | ± 0.008° Rotation/°C |
Direction of rotation | Both |
Redundancy | Yes |
Flying lead and Wires
Red | US 1 |
Blue | Gnd 1 |
White | Sig 1 |
Orange | US 2 |
Green | Gnd 2 |
Yellow | Sig 2 |
Sleeve | DR-25 |
Wire size | AWG 26 |
Wire length L | 100 cm |
Installation Notes
The products of the RP series can be connected directly to most control units. |
The sensor is designed with contactless Hall effect technology. |
Any mounting orientation is possible. |
Sensor is at mid point of electrical angle when shaft and wire exit are aligned as shown in the offer drawing. |
Please find further application hints in the offer drawing at our homepage. |
Safety Note
The sensor is not intended to be used for safety related applications without appropriate measures for signal validation in the application system. |
Fulfilled Legal Standards/Legal Requirements
EMC Requirement | UNECE10 |
Ordering Information

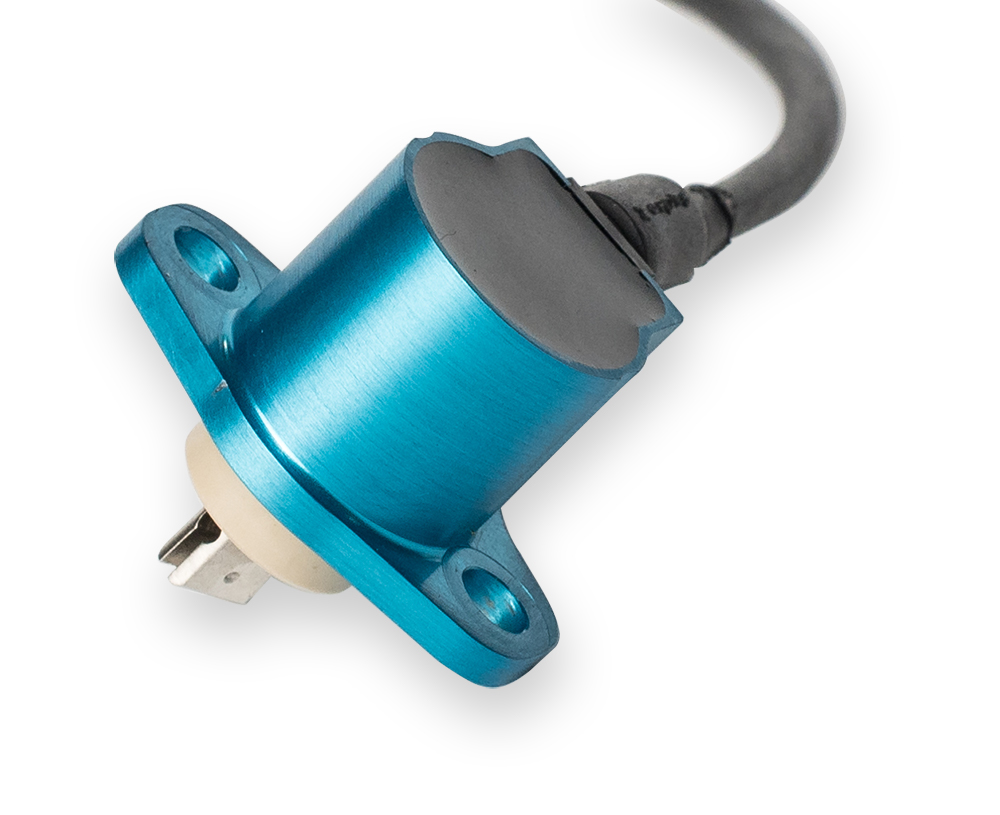

Rotary Position Sensor RPS-F
Single output, 360° range
Order number: F02U.V0U.400-02
Rotary Position Sensor RPS-F

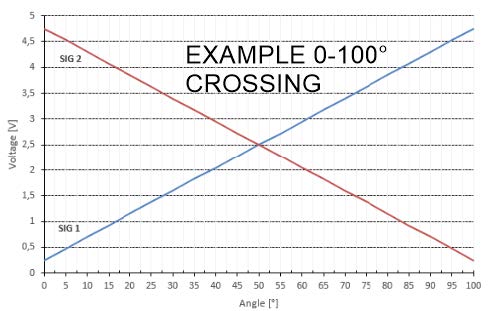

Dual output, 100° range, crossing signals (throttle)
Order number: F02U.V0U.401-02
Rotary Position Sensor RPS-F
Dual output, 40° range, second signal 50 % of first (pedal)
Order number: F02U.V0U 402-02
Rotary Position Sensor RPS-F
Dual output, 100° range, second signal 50 % of first (pedal)
Order number: F02U.V0U.403-02

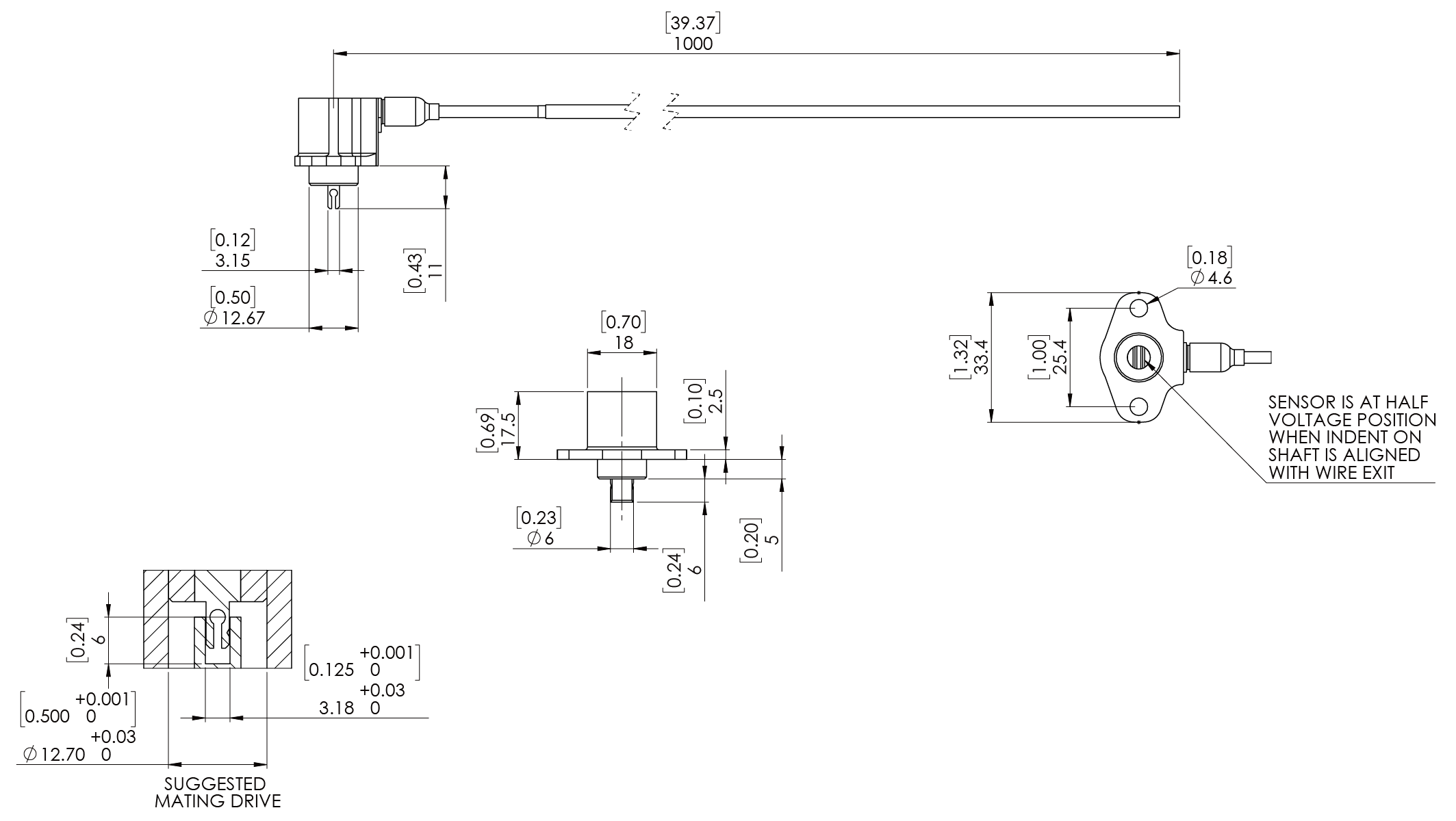

Dimensions
Legal Restrictions
The sale of this product in Mexico is prohibited.
Due to embargo restrictions, sale of this product in Russia, Belarus, Iran, Syria, and North Korea is prohibited.
