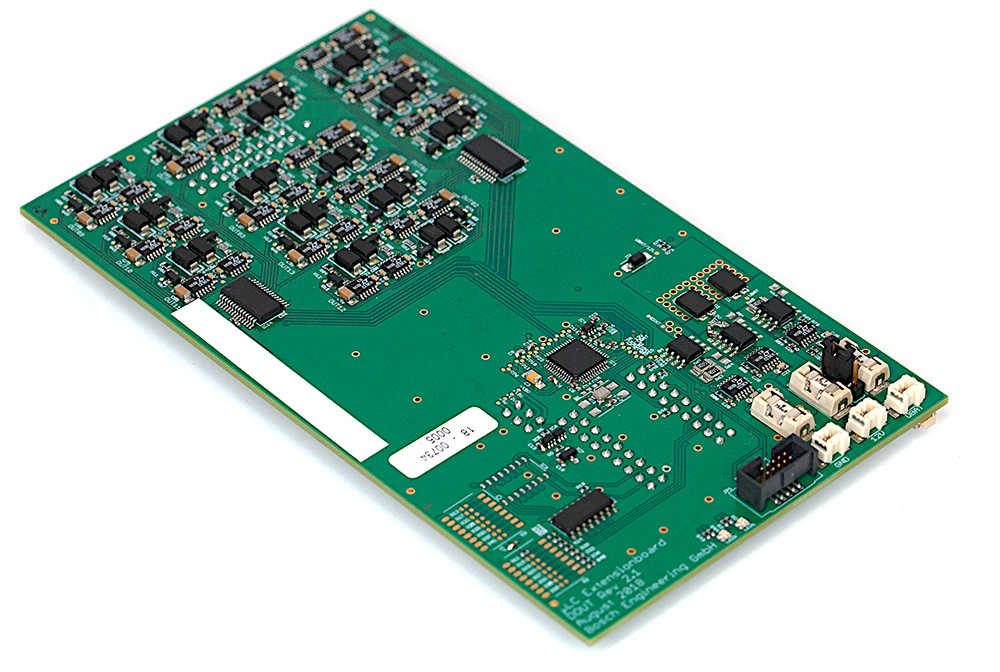

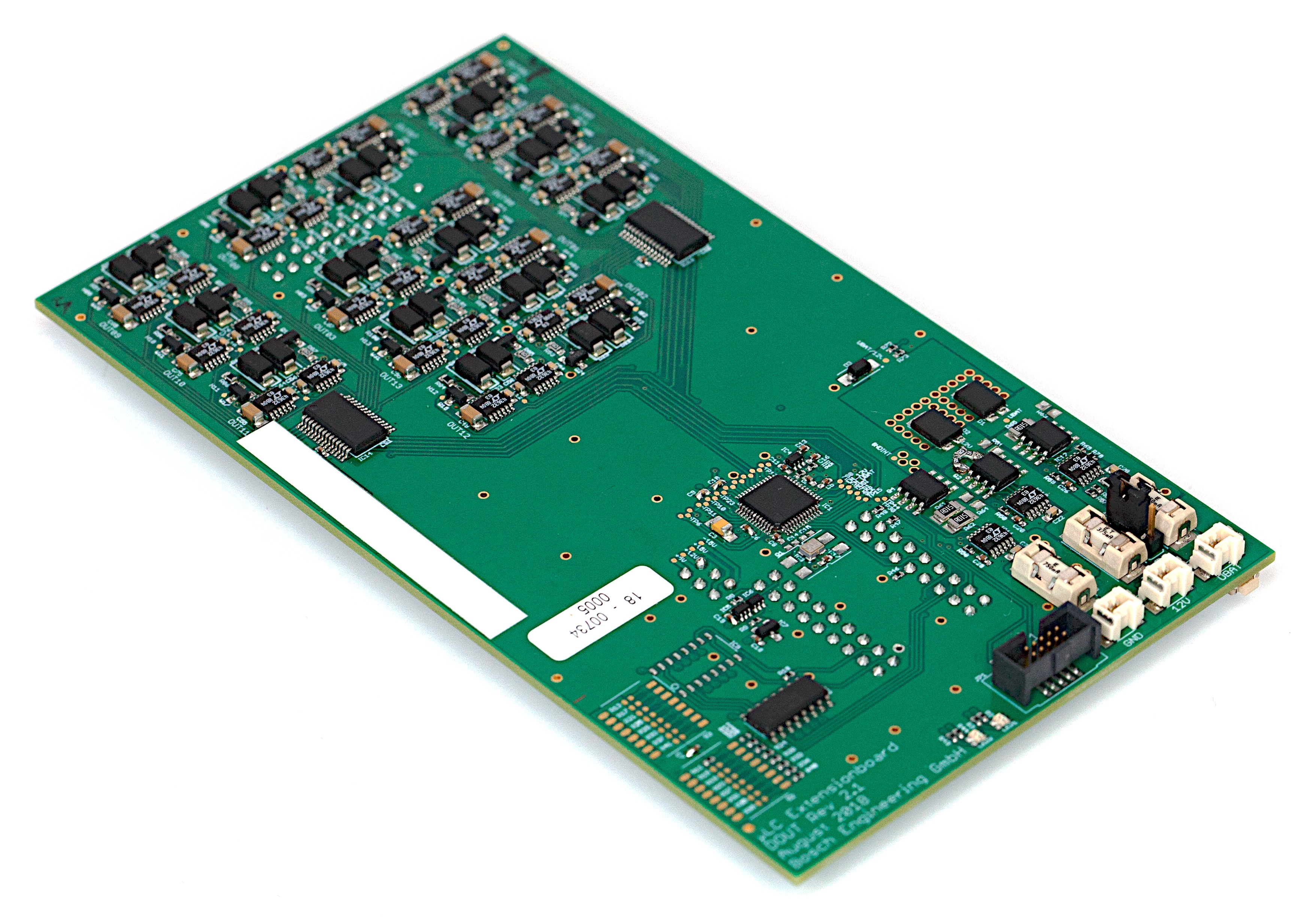

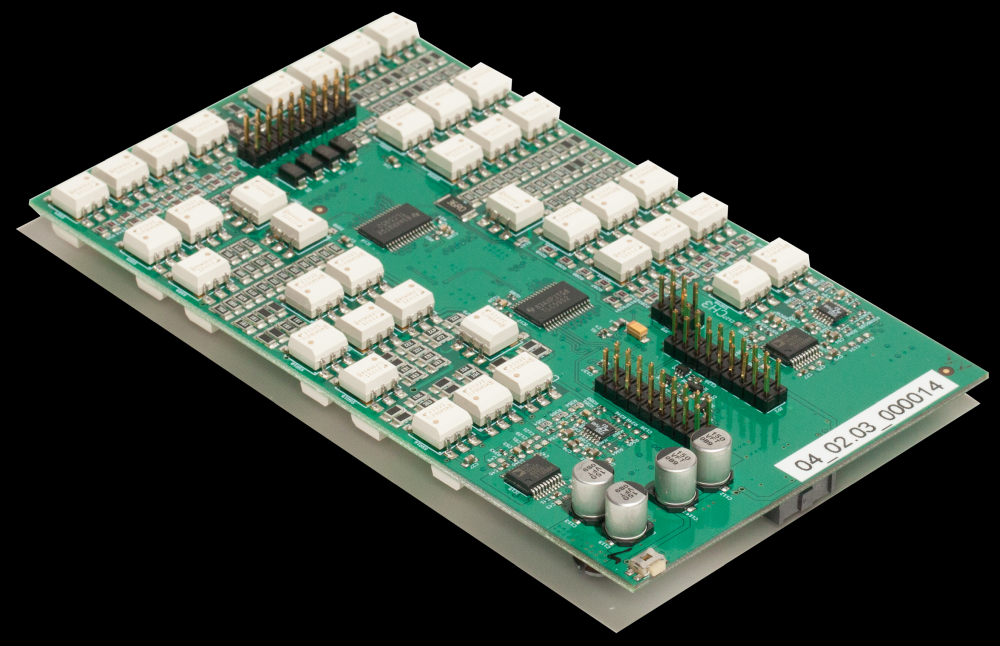

The Expansion Board Digital Outputs extends the functions of the µLC Test System without interventing the software and without activating additional mechanisms. Digital Outputs provides 14 digital outputs, which can be switched individually to the states Low, High or High-Z. All outputs can be switched simultaneously.
Downloads
Features
- 14 additional digital outputs included
- Short circuit proof
- Change to individual states possible: Low, High, High-Z
Application
Output voltage | Min | Max |
|---|---|---|
µLC 3.1 | -1 V | 24 V |
Technical Specifications
DC characteristics
Parameters | Conditions | Value |
|---|---|---|
Uout | Output = Low | <1.1 V |
Uin-Uout | Output = High | <1.8 V |
Rout | Output = High-Z | >10 MOhm |
Iout, prot | Channel shutdown threshold | ±1 A |
∏Iout, prot | Shutdown threshold total current all outputs | ±3.33 A |
Timing measured at Uin = 24 V
Parameters | Conditions | Value |
|---|---|---|
trise | Load of 500 Ohm to GND | 58 µs |
| Load of 500 Ohm to 24 V | 0.3 µs |
| Without load | 62 µs |
tfall | Load of 500 Ohm to GND | 0.8 µs |
| Load of 500 Ohm to 24 V | 5.5 µs |
| Without load | 12 µs |
trestart * |
| 33.6 ms |
*: Restart time after overcurrent
Ordering Information
Expansion Board Digital Outputs
Order number: F02U.V02.904-01
