Fuel Pump FP 165-E

Fuel pressure

0.5 up to 6 bar

Delivery rate at 5 bar and 22°C

190 l/h at 4.3 bar

Pressure limiting valve

8 to 10.0 bar rel.

Fuel compatibility

Up to E100 with shorter lifetime

Diesel compatibility

Given

Operating temperature range

-40 to 80°C
≤90°C for ≤5 h over 1.000 h lifetime
≤105°C for ≤1 h over 50 h lifetime

Storage temperature range

-40 to 60°C

Max. vibration
IEC 60068-2-34

10 Hz 19,4 (m/s²)²/Hz
300 Hz 0,654 (m/s²)²/Hz
1.000 Hz 0,059 (m/s²)²/Hz

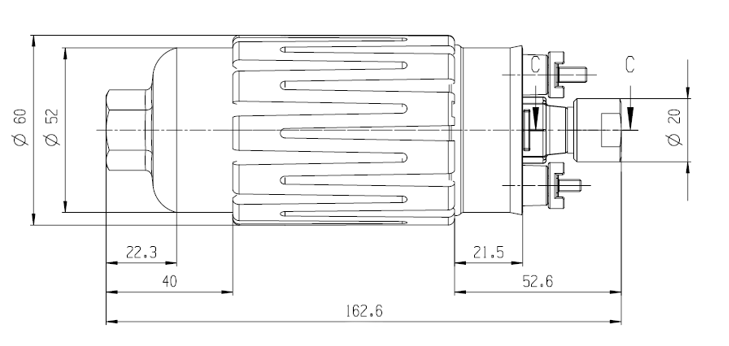

Diameter

60 mm

Length

162.6 mm

Weight

700 g

Mounting

Clamping

Supply voltage

6 to 15 V

Operating voltage

13 V (26 V for 60 s)

Load current at 5 bar and 22°C

<14 A

Color

Silver

Non-return valve

Internal

Overpressure valve

Internal

Electrical connector

+M4/-M5

Electrical mating connector

with ring wire M4 and M5

Mechanical connector intake side

M14x1.5

Mechanical connector pressure side

M12x1.5

Up to E100 with shorter lifetime

For technical reasons the values may vary.

Please use within the specified limit values only.

Please find further application hints in the offer drawing at our homepage.
