CAN Keypad CK-M12

The CAN Keypad CK-M12 allows for simplification of the dashboard by offering 12 buttons and 9 additional wired inputs to be evaluated and transmitted via CAN bus to other devices on the bus. Each button has an individually addressable LED indicating ring that can be used to acknowledge a button press event, indicate status of a device, or alert the driver to a fault condition. No special configuration software is needed, all feedback logic is done by PBX, DDU or ECU. Each keypad is supplied with 15 black inserts, optional insert kits are also available.

Downloads

Literature

Data Sheet

Operation Manual

3D Data

Software

CK_M12_BASE_SW

Features

12 standard buttons with color indicator rings
9 additional digital switch inputs
Moveable button inserts
CAN input / output

Application

Usage	PBX / DDU / ECU Interface
Temperature range	-40 to 85°C

Technical Specifications

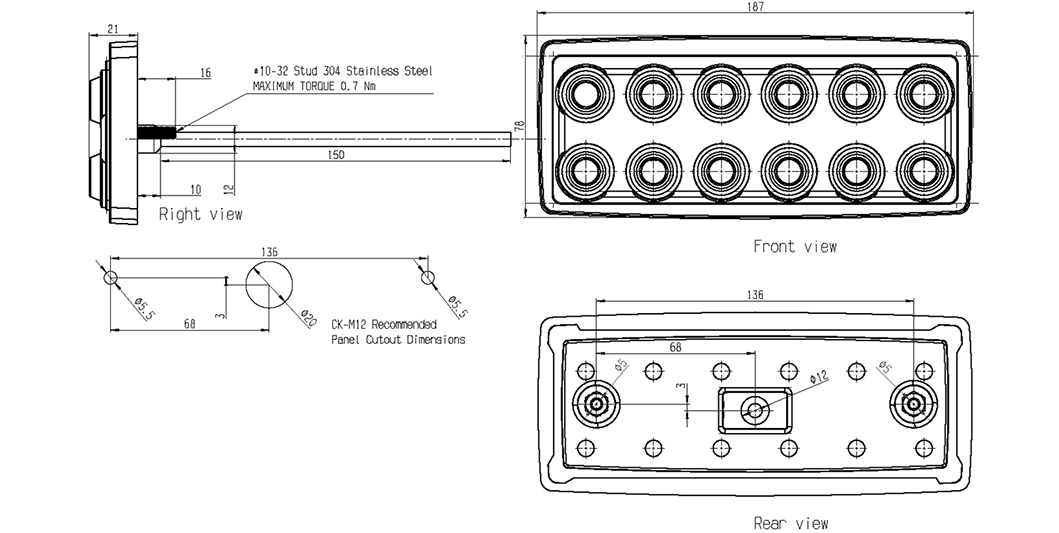

Mechanical Data

Size	78 x 187 x 21 mm
Weight	280 g
Max. vibration	11 ms 30 G peak
Protection Classification	IP68

Electrical Data

Power supply Vs	9 to 32 V
Average current draw	100 mA
Max current draw	250 mA

Characteristics

Signal output	CAN
CAN transmit rate	100 Hz*
CAN baud rate	1 Mbaud*
TX ID	0x800*
RX ID	0x801*
TX Data	1 bit status for each input
RX Data	4 bit integer for each indicator color, 4 bit integer for brightness
* Custom CAN IDs / baud Rate Optional Upon Request
Note: CK-M12 DBC file available for CAN configuration

Connectors and Wires

CK-M12 Termination

Flying Lead 24AWG

Recommended Connectors

CK-M12	AS610-35PN
Mating	AS110-35SN

Wire Identification

Wire	Function
Red	12/24 V Power
Black	Ground
Yellow	CAN high (CANH)
Green	CAN low (CANL)
White, Black Trace	Digital Input 1 activated by Ground
White, Brown Trace	Digital Input 2 activated by Ground
White, Red Trace	Digital Input 3 activated by Ground
White, Orange Trace	Digital Input 4 activated by Ground
White, Yellow Trace	Digital Input 5 activated by Ground
White, Green Trace	Digital Input 6 activated by Ground
White, Blue Trace	Digital Input 7 activated by Ground
White, Purple Trace	Digital Input 8 activated by Ground
White, Grey Trace	Digital Input 9 activated by Ground

Insert Kits

Insert Road Race Kit
	A/C
	ABS
	Alarm Reset
	Anti-Lag
	Arrow x 4
	Brake Spray
	Boost Decrease
	Boost Increase
	Brightness Down
	Brightness Up
	Close Menu
	Cool Suit
	Cooling Fan
	Day/Night Mode
	Drink
	Flash Hi Beam
	Fuel Reserve
	Fuel Reset
	Full Course Yellow
	Function Toggle
	Gearbox Emergency
	Hazard Flasher
	Heated Windshield
	Helmet Fan
	High Beam
	Horn
	Launch
	Low Beam
	Map Down
	Map Up
	Neutral
	Open Menu
	Page Down
	Page Up
	PDU Reset
	Pit Switch
	Power
	Power Steering Reset
	Pump Out
	Push to Pass
	Radiator Spray
	Rain Light
	Reset
	Reverse
	Select
	Starter
	Traction Control Down
	Traction Control Up
	Wet Mode
	Windshield Spray
	Windshield Wiper
Insert Drag Race Kit
		A/C
		Alarm Reset
		Anti-Lag
		Arrow x 4
		Boost Decrease
		Boost Increase
		Brightness Down
		Brightness Up
		Burnout
		Close Menu
		Cooling Fan
		Day/Night Mode
		Function Toggle
		Hazard Flasher
		High Beam
		Horn
		Launch
		Line Lock
		Low Beam
		Map Down
		Map Up
		Nitrous Arm
		Nitrous Purge
		Open Menu
		Page Down
		Page Up
		PDU Reset
		Power
		Pump Out
		Push to Pass
		Reset
		Select
		Starter
		Traction Control Down
		Traction Control Up
		Transmission Brake
		Windshield Spray
		Windshield Wiper
Insert Alpha/Numeric Kit
A			V
B			W
C			X
D			Y
E			Z
F			!
G			-
H			+
I			0
J			1
K			2
L			3
M			4
N			5
O			6
P			7
Q			8
R			9
S			10
T			11
U			12
