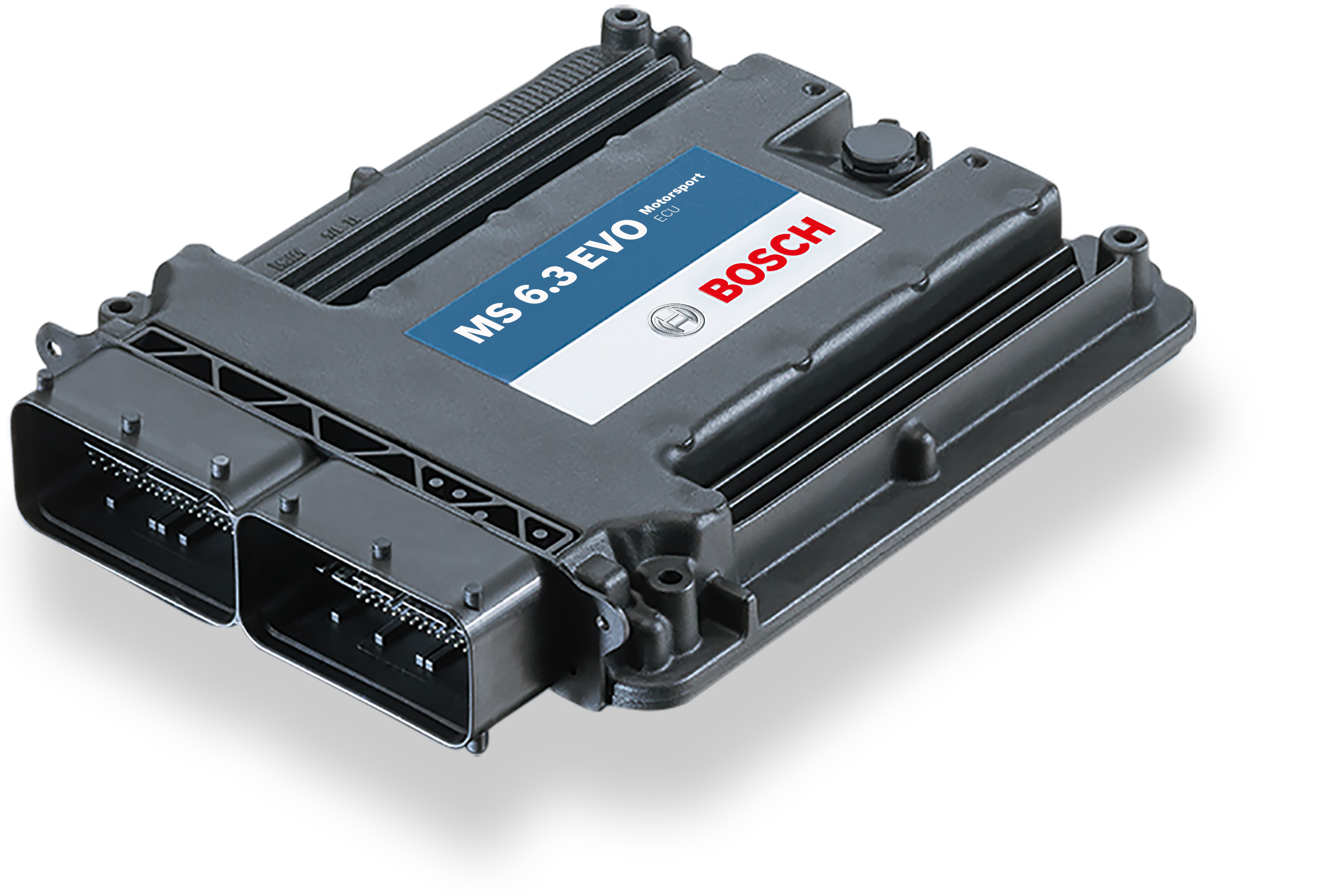

Engine Control Unit MS 6.3 EVO

Aluminum housing

2 Bosch connectors

196 pins in total

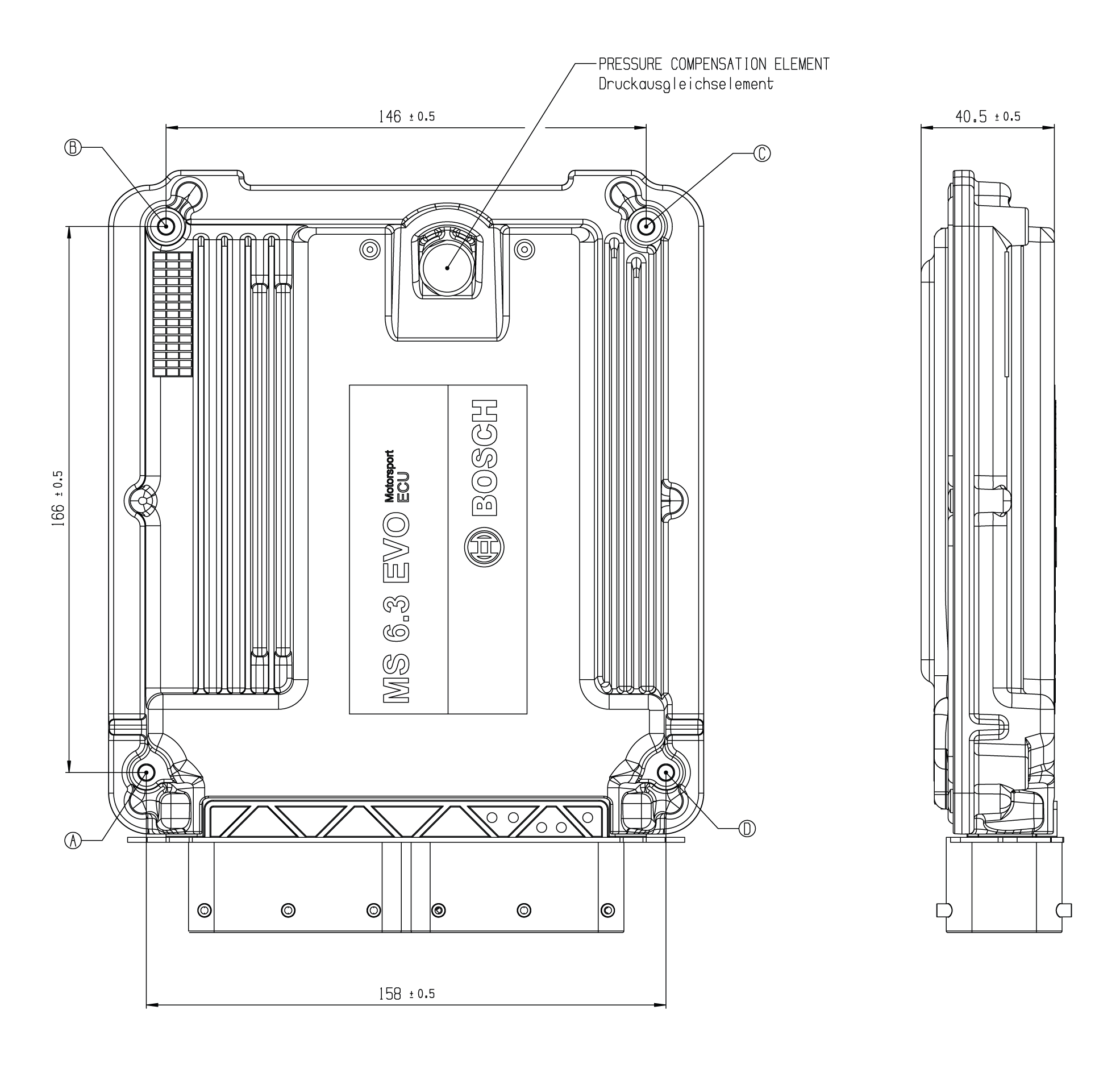

Size

226 x 181 x 44 mm

Weight

1,086 g

Protection Classification

IP54

Temp. range (at internal sensors)

-20 to 80°C

Power supply

6 to 18 V

CPU

Dual Core 667 MHz, FPGA

21 analog inputs

6 x reserved for electronic throttle controls

3 x no integrated pull-up

3 x option for angle synchronous measurement, no integrated pull-up

4 x fixed 3.01 kOhm pull-up

5 x switchable 3.01 kOhm pull-up

6 internal measurements

1 x ambient pressure

1 x acceleration 6-axis

2 x ECU temperature

2 x ECU voltage

8 function related inputs

1 x Thermocouple exhaust gas temperature sensors (K-type)

2 x Lambda interfaces for LSU 4.9 sensor types

1 x Lap trigger/beacon input

4 x Knock sensors

18 digital inputs

1 x switchable Hall or inductive sensor for flywheel measurement

2 x Hall sensor for sync wheel detection

4 x switchable Hall or DF11 sensors for camshaft position or wheel speed

2 x switchable Hall or inductive sensors for turbo speed measurement

1 x digital switch for engine ON/OFF

8 x digital, e.g. SENT

4 x sensor supplies 5 V / 50 mA

3 x sensor supplies 5 V / 150 mA

7 x sensor grounds

2 x sensor screens

38 function related outputs

High Pressure Injection

2 x high pressure pump with MSV control

8 x high pressure injection for magnetic injectors

Low Pressure Injection

12 x 2.2 A low pressure injection for high impedance injectors

Ignition

12 x ignition control, IGBT or BJT, coils with integrated amplifier

2 x 8.5 A H-bridge reserved for electronic throttle

2 x 4 A pwm lowside switch for Lambda heater

19 freely configurable outputs

1 x 8.5 A H-bridge

2 x 4 A pwm lowside switch

4 x 3 A pwm lowside switch

8 x 2.2 A pwm lowside switch

4 x 1 A pwm lowside switch

3 output signals

1 x engine rpm

1 x flywheel

1 x trigger wheel

Data Analysis tool WinDarab V7

System Configuration tool RaceCon 2.7.0.9 or later

Mating Connector 91 pins

F02U.B00.711-01

Mating Connector 105 pins

F02U.B00.712-01

Product Safety

EN IEC 62368-1:2020+A11:2020

Materials

REACH - Nr. 1907/2006

EMC

UNECE10:rev.6/AMD1:2020

KN41

ISO11452-2

ISO11452-4

ISO10605

ISO7637-2

ISO7367-3

ISO16750-2

US FCC: Title 47, Part 15 Subpart B

ICES-003

Testing

SAEJ1211

2 Ethernet

3 CAN

1 LIN

8 SENT

1 RS232

1 Time sync synchronization Ethernet

3 Communication screens

Enables the control of a 2nd high pressure pump

17 Additional analogue inputs

• 7 x no integrated pull-up
• 1 x option for angle synchronous measurement, no integrated pull-up
• 1 x fixed 3.01 kOhm pull-up
• 8 x switchable 3.01 kOhm pull-up

Extension of the use of 8 digital channels as analogue / digital inputs (shared)

1 Additional function related inputs

• 1 x Thermocouple K-type

Provides the option to run customer developed software code on Bosch ECU

Extension for Recording 1

• 1,500 channels
• 1 kHz sampling rate

Activation of Recording 2

• 1,500 channels
• 1 kHz sampling rate
• 4 GB memory

Gear control MEGA-Line functionality, has to be used with MEGA-Line components (License model via MEGA-Line)

-- Link to MEGA-Line Support Request --

-- Link to MEGA-Line License Request Form --

Gear control Bosch Motorsport functionality

• Launch Timer
• Launch Distance
• Torque Pre-Control
• Launch RPM Control
• Universal Outputs for Time/Distance Controls

• Acceleration Sensor MM5.10 included
• Time/Distance Boost Control
• Driveshaft Speed Control
• Driveshaft Gradient Control
• Acceleration Control
• Wheelie Control

Activation of a set of additional functions for a single device:

• Crank rotation direction detection (using sensor DG23i)
• Using a 2nd crank backup sensor
• Crank-Pre-set, quick start based on previous crank stop position
• Far-Bank, 2nd injector per cylinder possible
• Cam-only-synchronisation, engine run without crank sensor signal (specific cam trigger wheel needed)

Innovation Package Project has the same content as Innovation License Device, but license is valid for the whole project instead of a single device
