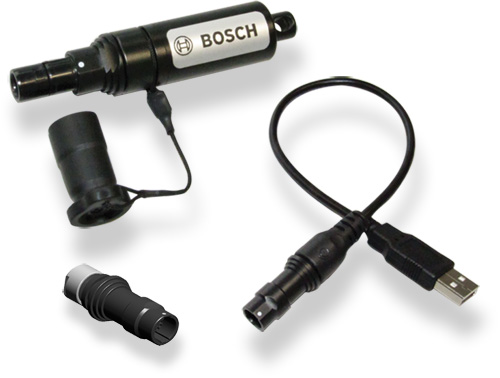

Our USB Data Components enable your Bosch device to store data on a USB flash drive. We offer a rugged USB flash drive, a mating connector to the car loom side and an adapter cable to USB-port.
The rugged USB flash drive is securely mounted within a rugged brass housing designed to provide full protection against extreme environmental conditions. It is IP68 protected and resistant to extreme operating temperatures (-30 to 85°C). The USB flash drive is equipped with a rugged protection cap.
- Downloads
- Features
- Application
- Technical Specifications
- Installation Notes
- Ordering Information
- Dimensions
- Legal Restrictions
Downloads
Features
- Capacity 32 GB
- Robust brass housing
- High performance push-pull connector
- Compatible with ECUs, VCUs, DDUs, Data Loggers, …
Application
Operating temperature range | -30 to 85°C |
Protection class | IP68 |
Tightening torque of Backnut for connection socket | 1.5 to 2.0 Nm |
Max. vibration | Vibration Profile 3 (see Downloads or www.bosch-motorsport.com) |
Technical Specifications
Mechanical Data USB flash drive
Housing material | Brass |
Weight | 42 g |
Length | 72 mm |
Bore diameter | 15.5 mm |
Electrical Data
Capacity | 32 GB |
Specification | USB 1.1/2.0 |
Data rate | USB 2.0 up to 480 MBit/s |
Connectors and Wires

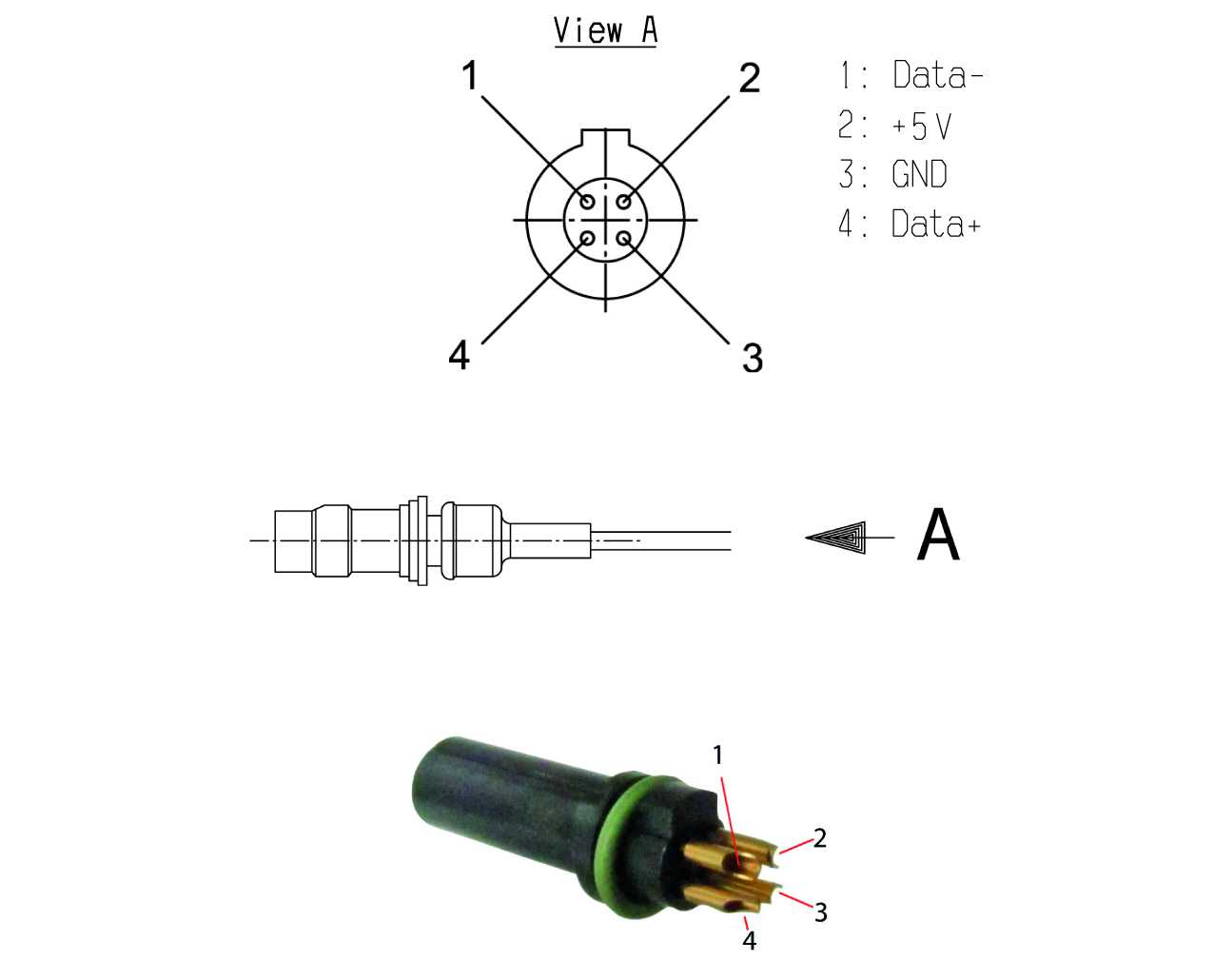

Pin layout for connection to vehicle loom (see also Dimensions) | |
Pin 1 | Data - |
Pin 2 | +5 V |
Pin 3 | GND |
Pin 4 | Data + |
USB Data Components
|
Installation Notes
The USB flash drive should be fixed on a soft surface to reduce stress. |
Ordering Information
Rugged USB flash drive
Order number: F02U.V03.534-01
Adapter cable to PC USB-Port
Order number: F02U.V01.343-01
Connector for USB flash drive on car loom side
Order number: F02U.002.996-01
Dimensions
Legal Restrictions
The sale of this product in Mexico is prohibited.
Due to embargo restrictions, sale of this product in Russia, Belarus, Iran, Syria, and North Korea is prohibited.
