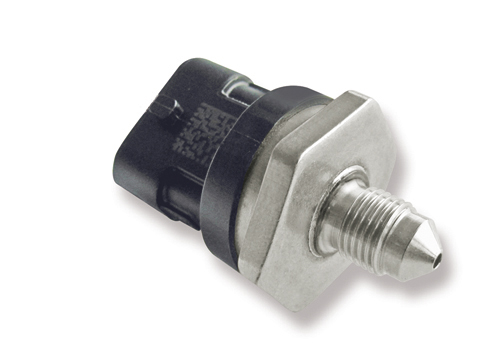

The PSS is specially designed to measure absolute pressure in gasoline direct injection applications. This sensor is also compatible with other kind of fluids e.g. Diesel, engine oil, transmission oil or brake fluid.
The sensor uses a thin layer technique to achieve high accuracy pressure measurements. The stainless steel measuring cells with piezoresistive bridges are hermetically welded with stainless steel pressure ports. The internal reference ensures ambient pressure independent measurements.
The main benefits of this sensor are its high accuracy, its wide measurement range and its robust and compact design.
- Downloads
- Features
- Application
- Technical Specifications
- Installation Notes
- Ordering Information
- Dimensions
- Legal Restrictions
Downloads
Features
- Application: 0 to 140, 260, 420, 600 bar
- Response time: 2 ms
- Pressure reference type: Absolut
- Power supply: 5 V
- Weight: 35 g
Application
|
Application and max. pressure |
Please see Variations |
|
Pressure reference type |
absolute |
|
Operating and media temp. range |
-40 to 130°C (140°C) |
|
Storage temp. range |
-30 to 60°C |
|
Max. vibration |
210 m/s2 at 147 to 1,350 Hz |
Technical Specifications
Variations
PSS | -140 | -260 | -420 | -600 |
Application (bar) 0 to | 140 | 260 | 420 | 600 |
Max. pressure (bar) | 180 | 320 | 560 | 660 |
Sensitivity at US = 5 V (mV/bar) | 28.57 | 15.38 | 9.52 | 6.67 |
Mechanical Data
Male thread | M10 x 1 |
Wrench size | 27 mm |
Installation torque | 22 ± 2 Nm in aluminum |
Weight w/o wire | 35.2 g |
Sealing | sealed cone |
Electrical Data
Power supply US | 4.75 to 5.25 V |
Max power supply US max | 16 V |
Full scale output UA | 10 to 90 % US ratiometric |
Current IS | 12 mA |
Characteristic
Load capacity | 10 nF |
Output resistance | 10 Ohm |
Tolerance (FS) | + 1 % (0 to 100°C) |
Sensitivity | Please see Variations |
Offset | 500 mV at US = 5 V |
Connectors and Wires
Connector | Bosch Compact |
Mating connector | 3-pole Compact |
Pin 1 | Gnd |
Pin 2 | Sig |
Pin 3 | US |
Installation Notes
The PSS- can be connected directly to most control units. Please consider the TCI for the electrical connection of the sensor. |
The sensor has a protection for overvoltage, reverse polarity and short-circuit. |
Please do not fix the sensor directly to the engine block to avoid undesired strong vibrations. |
Each mounting orientation is possible. |

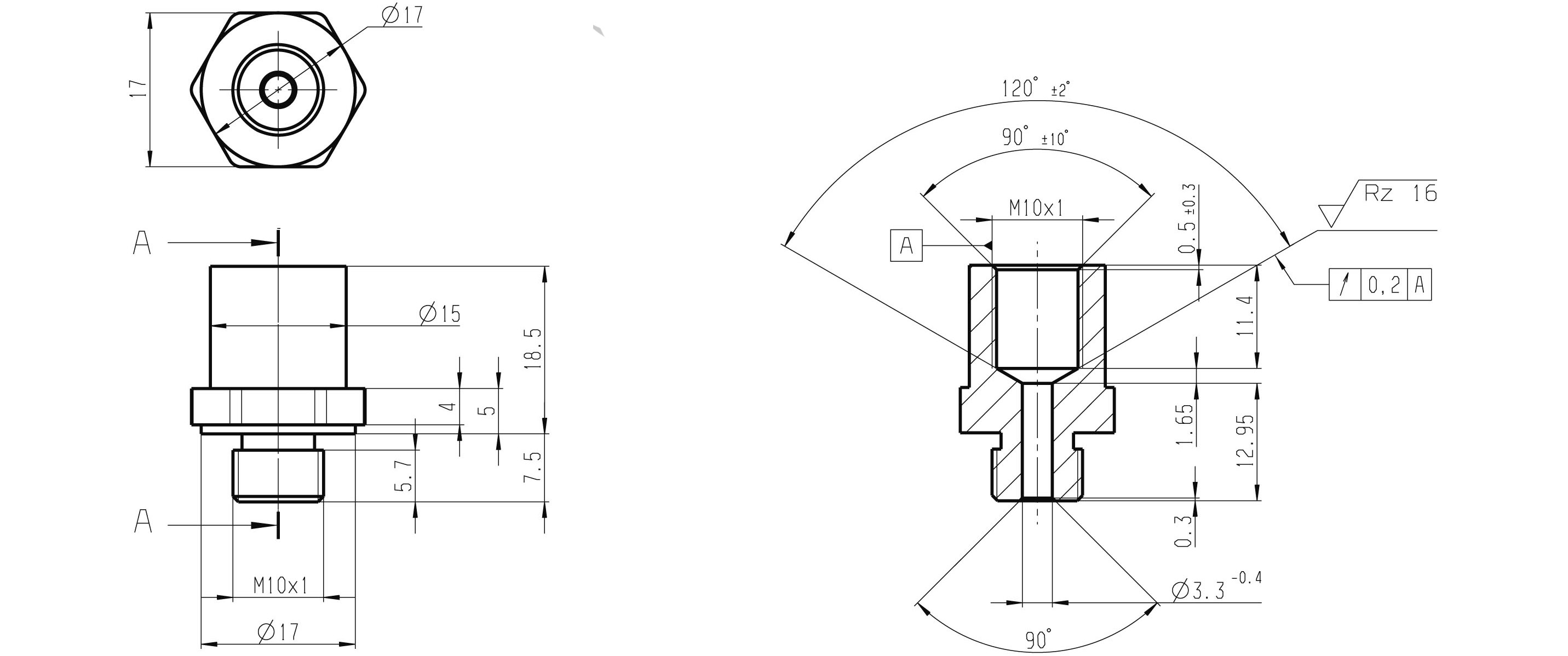

Please consider using the adapter F02U.002.711-01. |
The sensor meets all EMV, EMC and ESD automotive standards. |
Please find further application hints in the offer drawing and free download of the sensor configuration file (*.sdf) for the Bosch Data Logging System at our homepage. |
Safety Note
The sensor is not intended to be used for safety related applications without appropriate measures for signal validation in the application system. |
Ordering Information
Pressure Sensor Fluid PSS-140
Order number: 0261.545.053
Pressure Sensor Fluid PSS-260
Order number: 0261.545.040
Pressure Sensor Fluid PSS-420
Order number: 0261.545.136
Pressure Sensor Fluid PSS-600
Order number: 0261.B23.789-07
Accessories
Adapter
Order number: F02U.002.711-01

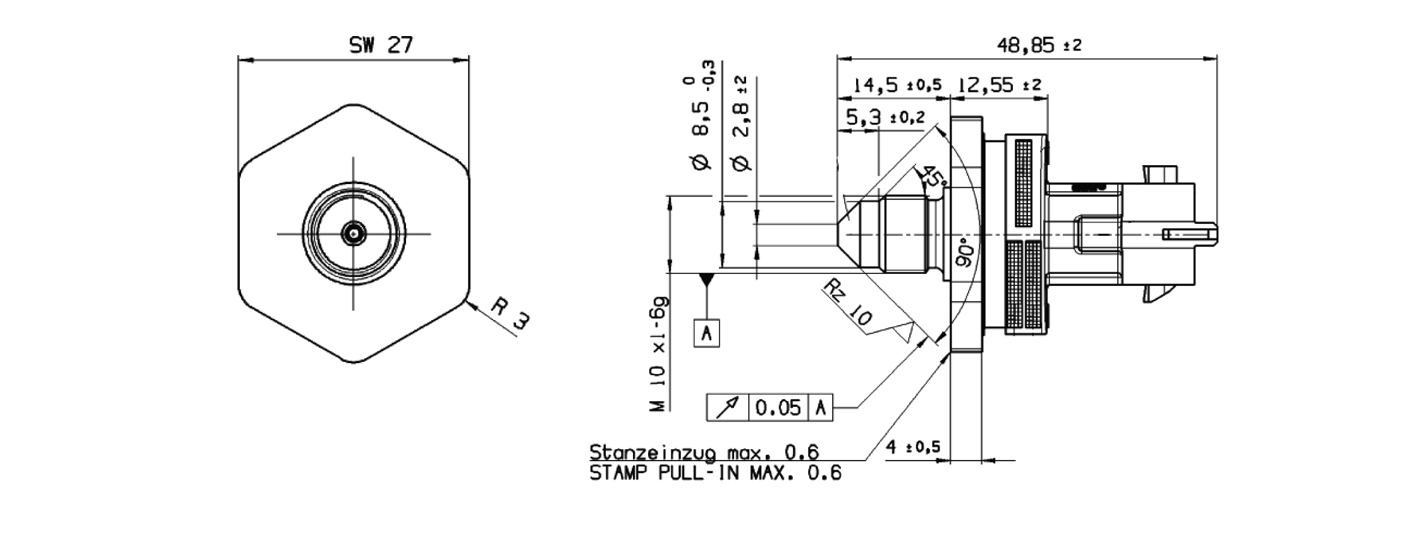

Dimensions
Legal Restrictions
Due to embargo restrictions, sale of this product in Russia, Belarus, Iran, Syria, and North Korea is prohibited.
