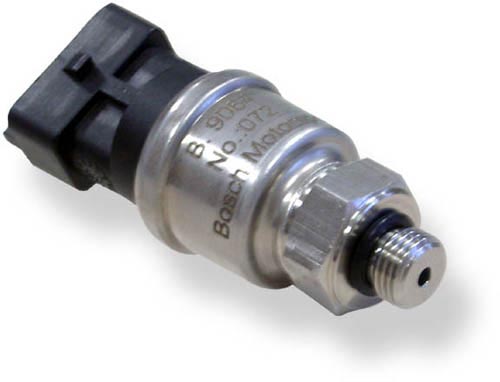

This sensor is designed to measure the pressure of media in relation to the ambient pressure (e.g. Diesel, gasoline, water, engine oil, transmission oil or air). The sensor is available for two different supply voltage ranges.
The sensor uses stainless steel measuring cells with piezo-resistive measuring bridges in thin layer technique, which are hermetically welded together with stainless steel pressure ports. This guarantees a complete media compatibility.
The main benefit of this sensor is the high quality of a production part at a low price
- Downloads
- Features
- Application
- Technical Specifications
- Installation Notes
- Ordering Information
- Dimensions
- Legal Restrictions
Downloads
Features
- Application: 0 to 250 bar
- Response time: 1.5 ms
- Pressure reference type: Relative
- Power supply: 5 V
- Weight: 45 g
Application
Application | 0 to 250 bar (r) |
Pressure reference type | relative |
Max. pressure | 500 bar |
Operating temp. range | -40 to 125°C (140°C) |
Media temp. range | -40 to 125°C (140°C) |
Storage temp. range | -20 to 50°C |
Bio fuel compatibility | E 85 / M 100 |
Max. vibration | 100 m/s2 rms at 10 to 2,000 Hz |
Technical Specifications
Mechanical Data
Male thread | M10x1 |
Wrench size | 17 mm |
Installation torque | 15 Nm |
Weight w/o wire | 45 g |
Sealing | O-ring 7.65 x 1.63 mm |
Electrical Data
Power supply US | 4.75 to 5.25 V |
Max power supply US max | ± 30 V |
Full scale output UA | 10 to 90 % US ratiometric |
Current IS | 8 mA |
Characteristic
Response time T10/90 | 1.5 ms |
Compensated range | 0 to 90°C |
Tolerance (FS) | ± 2.5 bar |
Tolerance (FS) | ± 1 % |
Sensitivity | 16 mV/bar at US = 5 V |
Offset | 500 mV at US = 5 V |
Connectors and Wires
Connector | Bosch Compact |
Mating connector | 3-pole Compact |
Pin 1 | Gnd |
Pin 2 | Sig |
Pin 3 | US |
Pin 4 | - |
Pin 5 | - |
Installation Notes
The PSS-250R can be connected directly to most control units. |
The sensor has a protection for over voltage, reverse polarity and short-circuit. |
Please do not fix the sensor directly to the engine block to avoid undesired strong vibrations. |
Each mounting orientation is possible. |
The sensor meets all EMV, EMC and ESD automotive standards. |
Please find further application hints in the offer drawing and free download of the sensor configuration file (*.sdf) for the Bosch Data Logging System at our homepage. |
Safety Note
The sensor is not intended to be used for safety related applications without appropriate measures for signal validation in the application system. |
Ordering Information
Pressure Sensor Fluid PSS-250R
4.75 to 5.25 V
Order number: B261.209.965-01
Dimensions
Legal Restrictions
Due to embargo restrictions, sale of this product in Russia, Belarus, Iran, Syria, and North Korea is prohibited.
