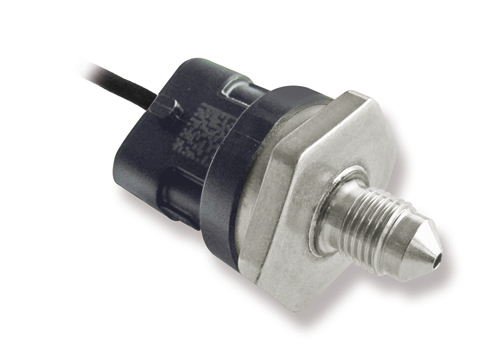

The PSC-260 is specially designed to measure absolute pressure in gasoline direct injection applications. This sensor is also compatible with other kind of fluids e.g. Diesel, engine oil, transmission oil or brake fluid.
The sensor uses a thin layer technique to achieve high accuracy pressure measurements. The stainless steel measuring cells with piezoresistive bridges are hermetically welded with stainless steel pressure ports. The internal reference ensures ambient pressure independent measurements.
The main benefits of this sensor are its high accuracy, its wide measurement range and its robust and compact design.
- Downloads
- Features
- Application
- Technical Specifications
- Installation Notes
- Ordering Information
- Dimensions
- Legal Restrictions
Downloads
Features
- Application: 0 to 260 bar
- Response time: 2 ms
- Pressure reference type: Absolut
- Power supply: 5 V
- Weight: 35 g
Application
|
Application |
0 to 260 bar (a) |
|
Pressure reference type |
absolute |
|
Max. pressure |
320 bar |
|
Operating temp. range |
-40 to 130°C (140°C) |
|
Media temp. range |
-40 to 130°C (140°C) |
|
Storage temp. range |
-30 to 60°C |
|
Max. vibration |
560 m/s2 at 800 to 900 Hz |
Technical Specifications
Mechanical Data
Male thread | M10 x 1 |
Wrench size | 27 mm |
Installation torque | 22 ± 2 Nm in aluminum |
Weight w/o wire | 35.2 g |
Sealing | sealed cone |
Electrical Data
Power supply US | 4.75 to 5.25 V |
Max power supply US max | 16 V |
Full scale output UA | 10 to 90 % US ratio metric |
Current IS | 12 mA |
Characteristic
Load capacity | 10 nF |
Output resistance | 10 Ohm |
Tolerance (FS) | + 1 % (0 to 100°C) |
Sensitivity | 15.38 mV/bar at US = 5 V |
Offset | 500 mV at US = 5 V |
Connectors and Wires
Connector | ASL606-05PC-HE |
Mating connector | F02U.000.228-01 |
Pin 1 | - |
Pin 2 | Gnd |
Pin 3 | Sig |
Pin 4 | US |
Pin 5 | - |
Various motorsport and automotive connectors are available on request. | |
Please specify the required wire length with your order. | |
Sleeve | DR-25 |
Wire length L | 13 to 95 cm |
Installation Notes
The PSC-260 can be connected directly to most control units. Please consider the TCI for the electrical connection of the sensor. |
The sensor has a protection for overvoltage, reverse polarity and short-circuit. |
Please do not fix the sensor directly to the engine block to avoid undesired strong vibrations. |
Each mounting orientation is possible. |

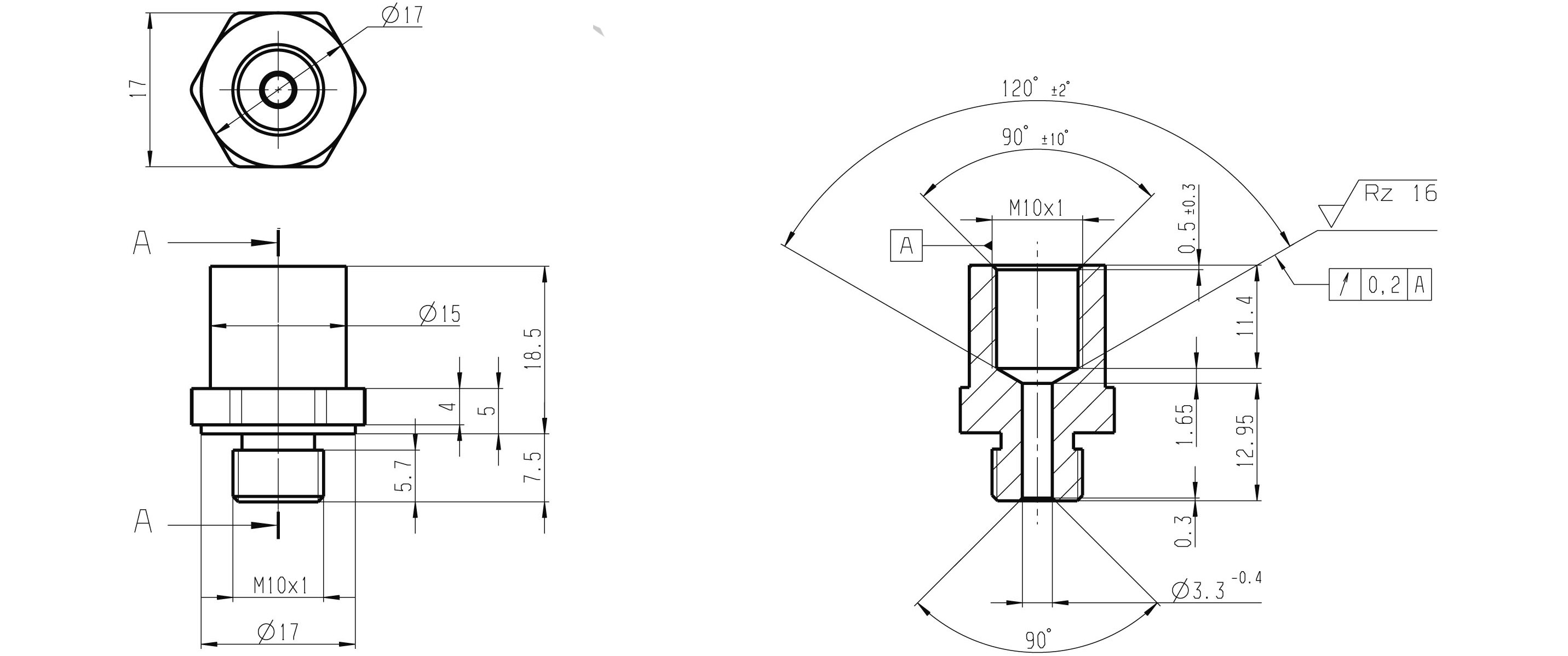

Please consider using the adapter F02U.002.711-01. |
The sensor meets all EMV, EMC and ESD automotive standards. |
Please find further application hints in the offer drawing and free download of the sensor configuration file (*.sdf) for the Bosch Data Logging System at our homepage. |
Safety Note
The sensor is not intended to be used for safety related applications without appropriate measures for signal validation in the application system. |
Ordering Information
Pressure Sensor Fluid PSC-260
Order number: F02U.V00.990-03
Accessories
Adapter
Order number: F02U.002.711-01

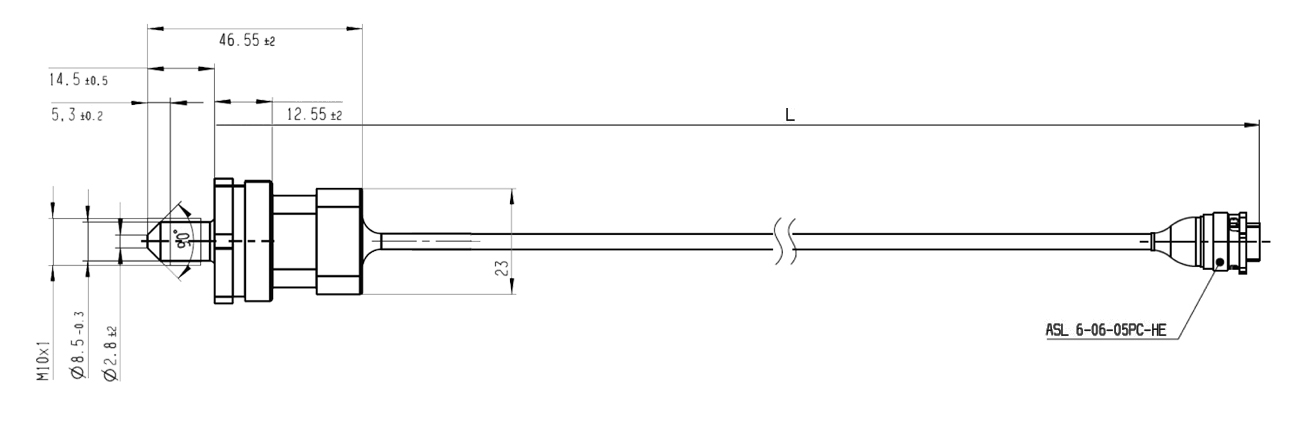

Dimensions
Legal Restrictions
Due to embargo restrictions, sale of this product in Russia, Belarus, Iran, Syria, and North Korea is prohibited.
